Built to move more air, quietly.
Inline-Jet Fans — Mixed-Flow Duct Fans, Ø100 to Ø315
Precision-engineered mixed-flow inline fans in high-strength PP — delivering up to 2,300 m³/h and 700 Pa of static pressure across five duct sizes.
05
Duct sizes / models
2300m³/h
Peak air volume
700Pa
Max static pressure
25dB
From (low speed)
5 models
The full inline-jet fans range.
Every model with its own spec sheet. Tap any card for full technical data, dimensions and pricing.
Every model in the range, largest first.
Values are nominal air volume (high) in m³/h at standard test conditions. Full figures are in the specification table on this page.
Not sure which model?
We size it for you, free.
Picking from a table is guesswork. Send us the floor area, the roof height and what happens inside the building, and our engineering team will tell you exactly which model — and how many — you need. No charge, no obligation, one working day.
Overview
Inline-Jet Mixed-Flow Duct Fans
At the core of every Inline-Jet Fan is a mixed-flow impeller that combines the pressure characteristic of a centrifugal fan with the volume of an axial one. Housed in a double-insulated PP body with a snap-joint shell, it delivers strong, stable airflow through long duct runs — while staying light enough for single-person installation and quiet enough for occupied spaces.
The high-strength polypropylene body resists corrosion in humid, demanding environments. Double-insulated motor construction adds a layer of electrical safety for continuous operation. The snap-joint housing means fast installation, secure sealing and simple access for cleaning — no specialist tools required.
Five duct sizes — Ø100, Ø150, Ø200, Ø250 and Ø315 mm — cover everything from a single bathroom stack to whole-building air movement, HRV/ERV boosting and commercial parking or utility extraction. Three mounting configurations support ceiling, bracket and wall installation, and the reversible orientation supports both supply and extract.
Engineering
Why plants specify inline-jet fans.
6 reasons the range holds up in continuous industrial service.
High-strength PP body
Moulded from high-strength PP plastic for lightweight durability, corrosion resistance and long life in humid environments.
Double insulation
A double-insulated motor construction adds an extra layer of electrical safety for continuous, worry-free operation.
Mixed-flow impeller
Purpose-designed for high pressure and large air volume at high efficiency — more air per watt, remarkably low sound.
Snap-joint housing
A special snap-joint design enables fast installation, secure sealing and simple access for cleaning — no specialist tools.
Flexible airflow
Reversible orientation supports both supply and extract; the impeller holds pressure through bends and long duct runs.
Quiet mounting
The moulded base and bracket points dampen vibration, keeping operation quiet even above occupied rooms.
Full data sheet
Complete technical specifications.
Request a quotation — five duct sizes, project pricing available.
| Model | Power (W) | Air volume (m³/h) | Static press. (Pa) | Sound (dB) | Duct size (mm) | Weight (kg) | Area (m²) |
|---|---|---|---|---|---|---|---|
| AYZAIR-315 | 320 / 230 | 2300 / 1800 | 700 / 500 | 66 / 61 | 315 | 9.7 | 60–120 |
| AYZAIR-250 | 170 / 130 | 1500 / 1100 | 550 / 400 | 60 / 54 | 250 | 7.0 | 42–84 |
| AYZAIR-200 | 70 / 60 | 850 / 700 | 350 / 280 | 50 / 45 | 200 | 3.1 | 34–76 |
| AYZAIR-150 | 50 / 40 | 500 / 400 | 300 / 250 | 35 / 30 | 150 / 160 | 2.2 | 18–36 |
| AYZAIR-100 | 28 / 25 | 200 / 150 | 180 / 130 | 30 / 25 | 100 / 125 | 1.8 | 8–16 |
Two-speed ratings shown as high / low. Figures are nominal at free air and standard conditions; actual output varies with duct resistance and installation. Applicable area is indicative, based on typical ceiling height and air-change requirements.
← Swipe the table sideways to see all columns
Where it fits
Built for the spaces where air matters.
Get a quotation
Tell us about the building.
Share the area, roof height and what happens inside. Our engineering team sizes the right number and configuration of units — at no cost — and comes back within one working day.
Free engineering sizing — No charge, no obligation.
24-hour response — An engineer, not a call centre.
Pan-India supply & export — Manufactured in Pune, delivered worldwide.
Prefer to talk?
Answers
Inline-Jet Fans — frequently asked questions
Cannot find what you need? Call +91 80871 10156 or WhatsApp us — an engineer, not a call centre, picks up.
Ask on WhatsAppWhat is a mixed-flow inline fan?
A mixed-flow impeller combines the high static pressure of a centrifugal fan with the high air volume of an axial fan. This lets a compact inline unit push air through long duct runs with multiple bends where a plain axial fan would stall.
Which size do I need?
Match the fan to your existing duct diameter and required air changes. As a guide: Ø100 for 8–16 m², Ø150 for 18–36 m², Ø200 for 34–76 m², Ø250 for 42–84 m² and Ø315 for 60–120 m² at typical ceiling heights.
Can it be used for supply as well as extract?
Yes. The orientation is reversible, so the same unit works for supply or extract, including HRV/ERV boosting.
How is it mounted?

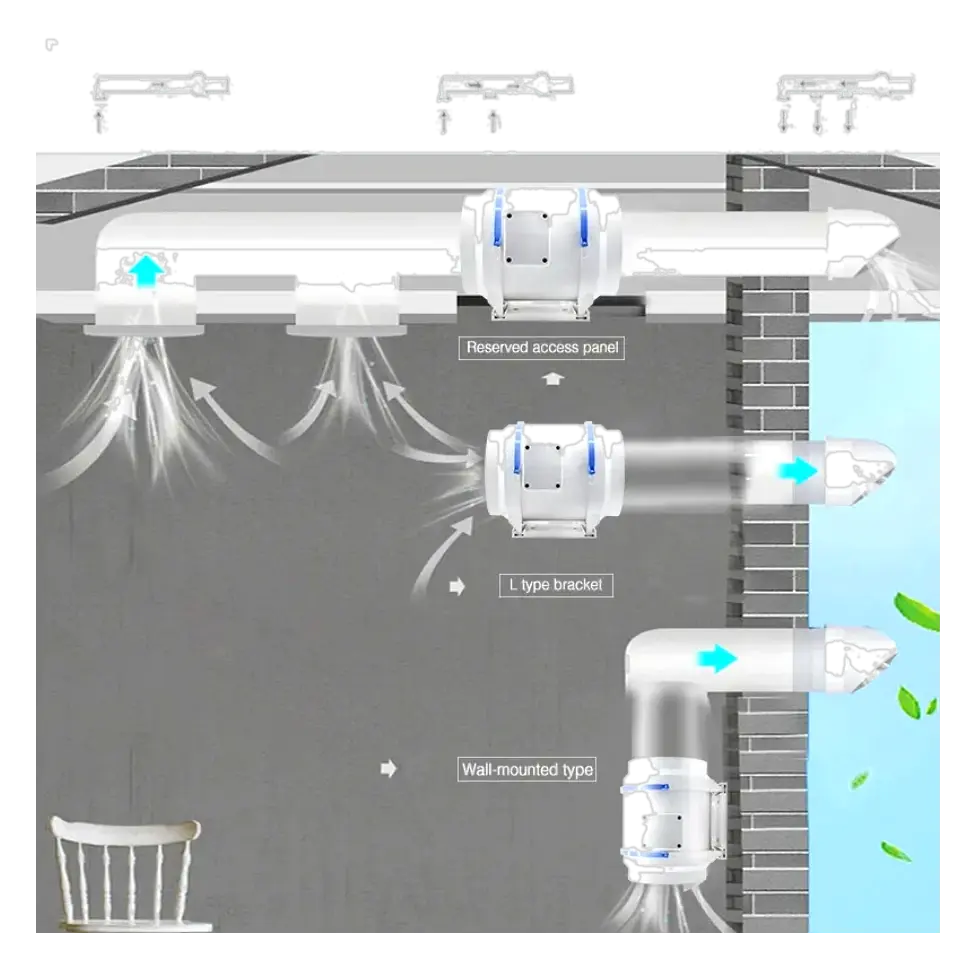

Three configurations: in-line along a horizontal ceiling duct with the reserved access panel facing outward, on an L-type bracket for suspended or offset installs, or wall-mounted vertically with a short duct riser.
How quiet is it?
From 25 dB at low speed on the Ø100 model. Moulded base and bracket points dampen vibration, which keeps operation quiet even when installed above occupied rooms.
