Big air. Low energy. Real comfort.
HVLS Large Ceiling Fans — DC Energy Saving / AS Series
HVLS (High Volume, Low Speed) fans move massive volumes of air gently across large indoor spaces. One Ayzair fan replaces 10–20 small high-speed fans — cutting energy use by up to 70%.
70%
Lower energy use
5–8°C
Cooler perceived temp
1,200m²
Single-fan coverage
≤40dB(A)
Whisper quiet
9 models
The full hvls fans range.
Every model with its own spec sheet. Tap any card for full technical data, dimensions and pricing.
Every model in the range, largest first.
Values are nominal air volume in m³/min at standard test conditions. Full figures are in the specification table on this page.
Not sure which model?
We size it for you, free.
Picking from a table is guesswork. Send us the floor area, the roof height and what happens inside the building, and our engineering team will tell you exactly which model — and how many — you need. No charge, no obligation, one working day.
Overview
Industrial HVLS Ceiling Fans
With diameters from 8 ft to 24 ft, a single Ayzair AS Series fan can cover up to 1,200 m² of floor area while drawing only 800–1,500 W. Continuous gentle airflow across the skin makes the whole floor feel markedly cooler, at any humidity.
At the heart of every fan is a DC brushless Permanent Magnet Synchronous Motor (PMSM) — IP55 enclosure, IE3+ efficiency, Class H insulation. No carbon brush, no hall sensor, no gearbox and no oil to leak. Direct drive means large torque with low temperature rise and a 10+ year design life.
Six extruded airfoil blades in aviation aluminium alloy 6063 with cast end-caps move up to 14,900 m³/min at ≤ 40 dB(A) — quieter than a conversation. Every fan ships with a VFD inverter controller, mounting hardware and safety cables, and is certified to CE, IEC, LVD and EMC.
Engineering
Why plants specify hvls fans.
8 reasons the range holds up in continuous industrial service.
Massive air movement
Up to 14,900 m³/min from a single unit — replacing 10 to 20 conventional high-speed fans.
Low operating cost
DC PMSM motor draws only 800–1,500 W across the entire 8 ft to 24 ft range.
Whisper quiet
Operates at 40 dB(A) or below at full speed — quieter than a normal conversation.
Built tough
IP55 rated, IE3+ efficiency class, Class H insulation and aviation aluminium 6063 blades.
Year-round value
Cools in summer through the evaporative effect; destratifies trapped ceiling heat in winter.
Smart control

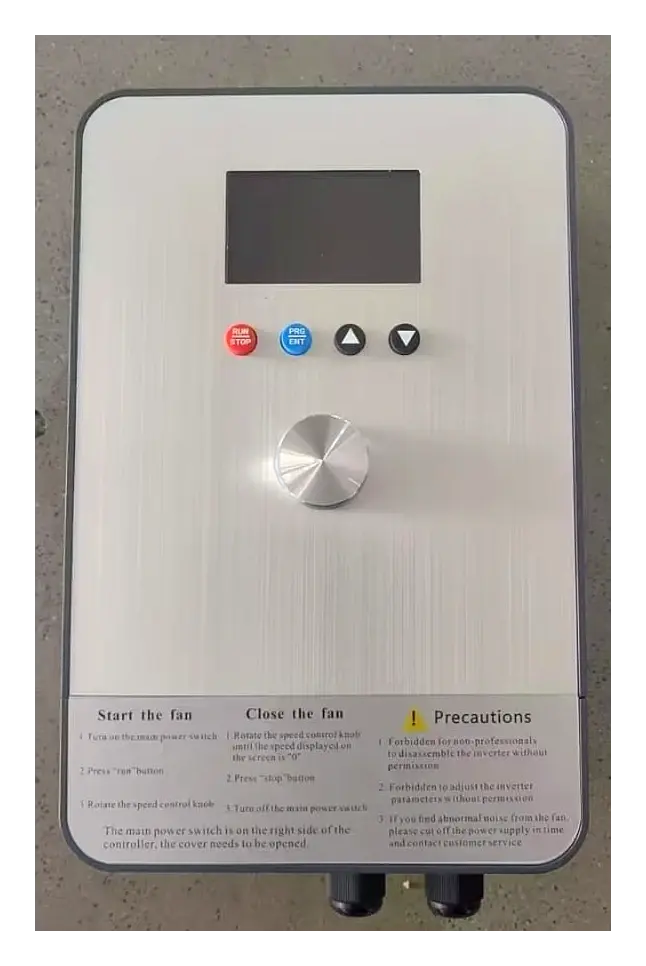

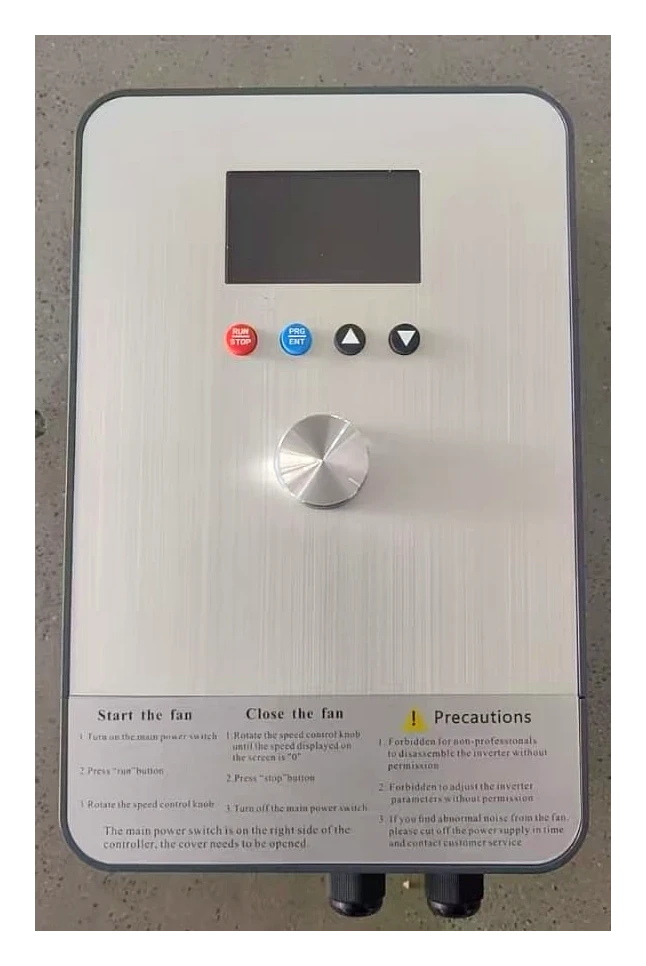

VFD inverter with LED display, stepless speed knob and an integrated safety protection module.
Direct drive
No gearbox, no oil leak, no carbon brush, no hall sensor. Large torque, low temperature rise.
Certified
CE, IEC, LVD and EMC certified. 10+ year design life on the motor and blade assembly.
Every angle
A closer look at the build.
Full data sheet
Complete technical specifications.
Request a quotation — priced by diameter, voltage and installation scope.
| Model | Voltage | Power | Current | Diameter | Speed | Air Volume | Coverage | Sound | Weight |
|---|---|---|---|---|---|---|---|---|---|
| Ayzair-24 | 220V/380V | 1500 W | 3.8 A | 7.32 m (24 ft) | 50 rpm | 14,900 m³/min | 1,200 m² | ≤ 40 dB(A) | 121 kg |
| Ayzair-22 | 220V/380V | 1400 W | 3.6 A | 6.72 m (22 ft) | 55 rpm | 13,500 m³/min | 1,100 m² | ≤ 40 dB(A) | 117 kg |
| Ayzair-20 | 220V/380V | 1200 W | 3.1 A | 6.12 m (20 ft) | 60 rpm | 12,200 m³/min | 1,000 m² | ≤ 40 dB(A) | 105 kg |
| Ayzair-18 | 220V/380V | 1000 W | 2.5 A | 5.52 m (18 ft) | 65 rpm | 10,800 m³/min | 900 m² | ≤ 40 dB(A) | 100 kg |
| Ayzair-16 | 220V | 950 W | 4.8 A | 4.88 m (16 ft) | 70 rpm | 8,900 m³/min | 770 m² | ≤ 40 dB(A) | 75 kg |
| Ayzair-14 | 220V | 950 W | 4.8 A | 4.28 m (14 ft) | 85 rpm | 7,400 m³/min | 640 m² | ≤ 40 dB(A) | 67.6 kg |
| Ayzair-12 | 220V | 850 W | 4.3 A | 3.68 m (12 ft) | 95 rpm | 5,900 m³/min | 470 m² | ≤ 40 dB(A) | 63.8 kg |
| Ayzair-10 | 220V | 800 W | 4.0 A | 3.08 m (10 ft) | 120 rpm | 5,200 m³/min | 300 m² | ≤ 40 dB(A) | 56.8 kg |
| Ayzair-8 | 220V | 800 W | 4.0 A | 2.48 m (8 ft) | 150 rpm | 4,200 m³/min | 200 m² | ≤ 40 dB(A) | 53 kg |
Frequency 50–60 Hz · 6-blade aviation aluminium 6063 · Insulation Class H · IP55 · IE3+. Sound measured 1.5 m below the fan at maximum rated speed. Coverage based on 7–9 m ceiling height. All models supplied with VFD inverter controller, mounting hardware and safety cables. Minimum recommended ceiling height: 7 m.
← Swipe the table sideways to see all columns
Where it fits
Built for the spaces where air matters.
Get a quotation
Tell us about the building.
Share the area, roof height and what happens inside. Our engineering team sizes the right number and configuration of units — at no cost — and comes back within one working day.
Free engineering sizing — No charge, no obligation.
24-hour response — An engineer, not a call centre.
Pan-India supply & export — Manufactured in Pune, delivered worldwide.
Prefer to talk?
Answers
HVLS Fans — frequently asked questions
Cannot find what you need? Call +91 80871 10156 or WhatsApp us — an engineer, not a call centre, picks up.
Ask on WhatsAppWhat is an HVLS fan?
HVLS stands for High Volume, Low Speed. These are large-diameter ceiling fans (8 ft to 24 ft) that move very large volumes of air at low rotational speed, producing a gentle, wide, floor-level breeze instead of the turbulent jet of a small high-speed fan.
How much area does one HVLS fan cover?
From 200 m² on the 8 ft Ayzair-8 up to 1,200 m² on the 24 ft Ayzair-24, based on a typical 7–9 m ceiling height. Actual coverage varies with room geometry and obstructions.
What ceiling height do I need for an HVLS fan?
A minimum ceiling height of 7 metres is recommended so the airflow column has room to develop and spread across the floor.
How much power does an HVLS fan consume?
Between 800 W and 1,500 W depending on diameter — a fraction of the 10 to 20 conventional fans a single HVLS unit replaces, cutting energy use by up to 70%.
Are HVLS fans noisy?
No. Every Ayzair AS Series model runs at 40 dB(A) or below at full speed, measured 1.5 m below the fan — quieter than a normal conversation, which is why they suit gyms, religious halls and showrooms.
Do HVLS fans help in winter?
Yes. Run at low speed, an HVLS fan destratifies the warm air trapped at ceiling level and pushes it back down to the occupied zone, cutting heating cost in tall buildings.
